Features

  • The double basket design features an aggressive lead roller with scalloped and pitched blades to penetrate and shatter the soil
  • The passive trailing roller features scalloped blades that run perpendicular to the ground to condition and finish the soil
  • 1/4" thick high-carbon steel blades cut through the soil like a steaknife to provide ideal soil conditioning action
  • This unique blade combination thoroughly mulches, agitates and mixes the top 2-3 inches of soil for optimum residue and chemical incorporation
  • Rollers can be operated in a free-float position for closely following the ground contour, or can be locked into one of five positions to be either more or less aggressive depending on your needs
  • Exclusive basket assembly design allows them to be easily reversed for extra firming action in lighter soils
  • Bearing choice of heavy-duty shielded bearing for long life in high-residue conditions (model 225 -select sizes) or flanged, four-bolt bearing for high-speed, high-residue, high-acreage applications (model 1225)
    • In addition to soil conditioning behind a disk, stalk chopping in the fall with the Rolling Harrow implement helps distribute residue and speed its decay
  • Choice of leveling bar in front of the rollers provides added smoothing and a more even surface for the most effective tillage action possible
  • Leveling bar can be pinned up for high-residue situations and available with choice of:
    • Diagonal round tooth with heat-treated 3/4" x 11" teeth
    • Spike-tooth with forged 3/4" x 11" diamond-shaped teeth
    • Coil-tine with 3/8" x 17" long spring tine
  • Minimal weight is added to the primary tillage implement lengthening its life
  • Extendible-length tongue for ideal turning
  • 22" of ground transport clearance
  • Use just one set of tractor hydraulic outlets
  • All hydraulic hoses are routed through mainframe and include end caps for longer life
  • Standard jack for parking and storing the implement
  • Available in 12' - 63' working widths depending on model

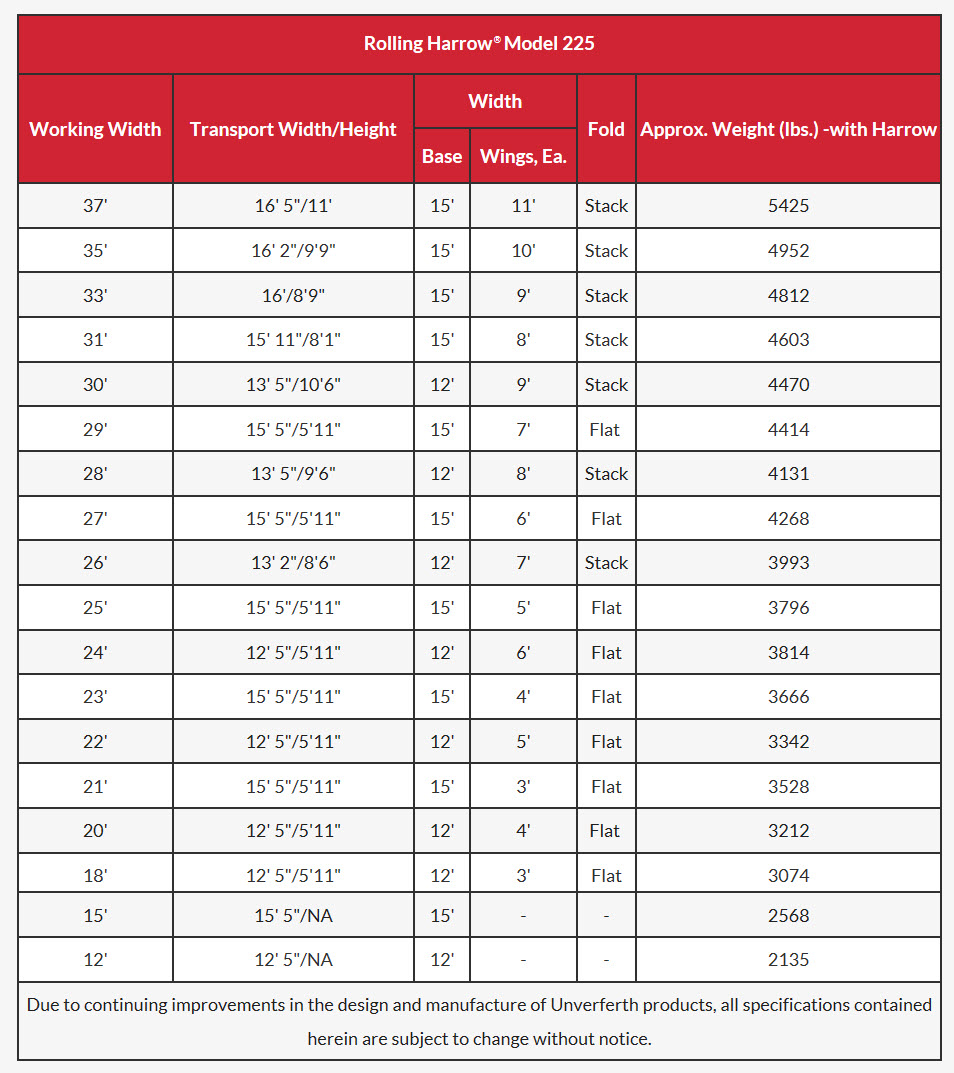

Specifications

Null
