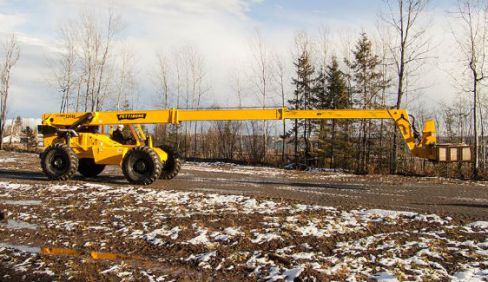

Pettibone Extendo 1144B / NOT AVAILABLE

Double tap to zoom



Features

Engine

The 1144B is powered by a 117-HP Cummins QSF3.8 Tier 4 Final diesel engine featuring electronic control and protection with SCR aftertreatment.

MD3 Display

Parker IQAN-MD3 display provides instant engine and aftertreatment diagnostics.

Transmission

Fully modulated Carraro Powershift transmission, with 4-speed forward and reverse with declutch, allows for safe deceleration before shifting gears.

Axles

Outboard planetary axles with oil-immersed, inboard service and parking brakes offer enhanced reliability.

Lift Cylinders

Two wide-stance, heavy-duty lift cylinders are slightly angled toward the center line of the chassis to triangulate the overall alignment. This keeps the boom centered as it elevates.

Rear Axle Stabilization

The rear axle stabilization system slows and locks the rear axle oscillation for enhanced stability as the boom is raised.

Sway Cylinder

Provides 24 degrees of fork leveling (12 degrees right and left of center).

Fork Leveling

The 1144B provides automatic fork leveling without needing slave cylinders.

Reach

Achieves forward reach up to 30 feet, 3 inches and a maximum lift height of 44 feet, 6 inches.

Hydraulics

Pressure compensated hydraulic system and auxiliary boom tip hydraulics give operators the flexibility to use multiple hydraulic functions at once. Single joystick, pilot operated control covers all boom functions.

Quick Connect

Easily switch between standard fork carriage and a wide range of attachments.

Steering

4-wheel drive with 2-wheel, 4-wheel and crab hydraulic power steering modes provides agility in tight spaces.

Turning Radius

Tight turning radius of 12 feet, 6 inches allows for more efficient operation.

Compact Design

Compact enough to fit under 8-foot doorway, yet still provides excellent ground clearance of 18.8 inches.

Tires

Standard 14.00 x 24 pneumatic tires offer 16 ply rating for durability on any terrain.

Operator Cab

Offering unmatched visibility, the cab includes an adjustable suspension seat with seat belt, adjustable right-side armrest, and a full set of gauges for instant machine status.

Specifications

Dimensions-
Overall Height 7' 7.5" (232 cm) boom down
Fork Carriage 48" (122 cm) standard
Ground Clearance 18.8" (48 cm)
Overall Length 22' (671 cm) to fork frame
Overall Width 8' 6" (259 cm)
Pallet Forks 2.25 x 4 x 48" standard
Total Operating Weight 27,150 lbs (12,315 kg)
Engine-
Model/Power 117 HP (87 kW) Cummins QSF3.8 Tier 4 turbo diesel with electronic control & protection and SCR aftertreatment
DEF Tank 5 gal. (19 L)
Fuel Tank 32.6 gal. (123 L)
Hydraulics-
System Pressure comp, axial piston
Features Auxiliary boom tip hydraulics
Quick disconnect for attachments
Controls Single joystick, pilot operated
Performance-
Max Load Capacity 11,000 lbs (4,990 kg)
Maximum Lift Height 44' 6" (1,356 cm)
Maximum Forward Reach 30' 3" (922 cm) at 24" LC
Below Grade Reach 3' 3" (99 cm)
Maximum Travel Speed 20 mph (32 km/h)
Turning Radius 12' 6" (381 cm)
Frame 24° of leveling (12° right and left)
Rear axle stabilization system
Fits under 8' doorway
Transmission Fully modulated Carraro Powershift, 4-speed forward & reverse; parking brake engaged transmission declutch
Axles Carraro outboard planetary; 4-wheel drive
Steering 4 wheel, 2 wheel, and crab steer
Brakes Oil-immersed inboard disc service brakes, integral park brake
Tires 14.00 x 24, 16 ply
Boom Automatic fork leveling without slave cylinders
2 wide stance, heavy-duty lift cylinders
