Features

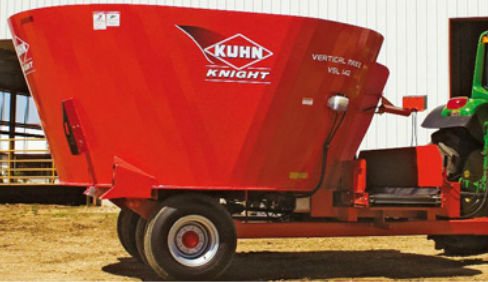

The VSL 142 is one of two new single-auger vertical mixer models designed for dairy and beef producers. This model has a low profile to allow for easy loading and the right capacity to easily serve small- to medium-sized operations.

This Vertical Maxx® mixer can effectively handle the broadest range of feedstuffs, including large round bales, and can process a ration that contains up to 100% hay to get more roughage in the ration. Design improvements to the body and mixing auger have enhanced mixing performance and discharge consistency. The hydraulic side-shift discharge conveyor and optional inclining extension provide superior unloading versatility.

Specifications

Capacity - no extensions (m3) 12
Capacity - no extensions (cu.ft) 420
Number of augers 1
Overall height - no extensions (cm) 244
Overall height - no extensions (in) 96
Overall width - without options (cm) 282
Overall width - without options (in) 111
Tread width (cm) 267
Tread width (in) 105
Weight (kg) 4436
Weight (lb) 9780
Drive Planetary
PTO speed (rpm) 540 / 1000
Minimum power requirement for PTO (kW) 67
Minimum power requirement for PTO (hp) 90
Maximum load (kg) 6396
Maximum load (lb) 14100
Door opening (h x w, cm) 106 x 99
Door opening (h x w, in) 42 x 39
Auger Diameters (cm) 274
Auger Diameters (in) 108
