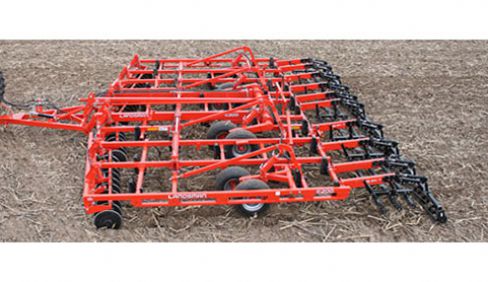

Kuhn LANDSMAN 6200-45 / NOT AVAILABLE

Double tap to zoom



Features

The Kuhn Krause 6200 Landsman® is a key component in the secondary tillage phase of the Profit Till System. The Landsman's unique and highly efficient 4-step tillage system is designed specifically to maximize crop yield and productivity. The Landsman offers unmatched productivity with a new six-bar frame for non-stop residue handling and sizes to 45 feet to create up to 400 acres per day of ideal seed bed.

The Landsman 4-step tillage system provides agronomic solutions to many of the crop production problems farmers face. Increased residue due to higher yields, Bt corn varieties and less "over winter" stalk deterioration are just a few of the situations that can push field cultivator seed bed preparation systems beyond their design capabilities.

Specifications

Working width (m) 5.5
Working width (feet) 45'
Frame type Quad Fold
Maximum authorised tractor power (kW) 301
Maximum Authorised Tractor Power (hp) 405
Weight (lb) 9735
Working width (m) 13,8
Working width (feet) 18
Number of discs 24
Number of discs 58
Disc diameter (cm) 50,8
Disc diameter (in) 20"
Number of wheels 12
Number of Shanks 61
Shanks spacing (cm) between 17,8 and 22,9
Shanks spacing (in) 7" or 9"
Transport width (m) 4.7
Transport width (feet) 15' 1"
Transport Height (m) 4.2
Transport Height (feet) 13' 6"
Number of sections 5
Weight (kg) 9719
Weight (lb) 21426
Tractor Power (kW) between 234 and 301
Tractor Power (hp) between 315 and 405
