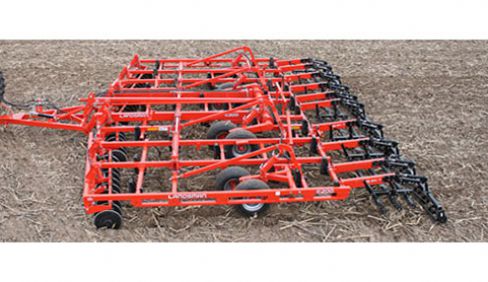

Kuhn LANDSMAN 6200-42 / NOT AVAILABLE

Double tap to zoom



Features

The Kuhn Krause 6200 Landsman® is a key component in the secondary tillage phase of the Profit Till System. The Landsman's unique and highly efficient 4-step tillage system is designed specifically to maximize crop yield and productivity. The Landsman offers unmatched productivity with a new six-bar frame for non-stop residue handling and sizes to 45 feet to create up to 400 acres per day of ideal seed bed.

The Landsman 4-step tillage system provides agronomic solutions to many of the crop production problems farmers face. Increased residue due to higher yields, Bt corn varieties and less "over winter" stalk deterioration are just a few of the situations that can push field cultivator seed bed preparation systems beyond their design capabilities.

Specifications

Working width (m) 5.5
Working width (feet) 42'
Frame type Quad Fold
Maximum authorised tractor power (kW) 281
Maximum Authorised Tractor Power (hp) 378
Weight (lb) 9735
Working width (m) 12,9
Working width (feet) 18
Number of discs 24
Number of discs 56
Disc diameter (cm) 50,8
Disc diameter (in) 20"
Number of wheels 12
Number of Shanks 57
Shanks spacing (cm) between 17,8 and 22,9
Shanks spacing (in) 7" or 9"
Transport width (m) 4.7
Transport width (feet) 15' 1"
Transport Height (m) 4.2
Transport Height (feet) 13' 6"
Number of sections 5
Weight (kg) 9427
Weight (lb) 20783
Tractor Power (kW) between 219 and 281
Tractor Power (hp) between 294 and 378
