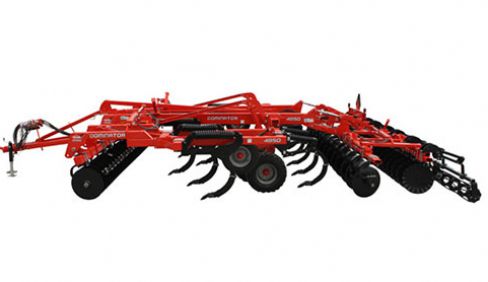

Kuhn DOMINATOR 4850-18 / NOT AVAILABLE

Double tap to zoom



Features

The DOMINATOR Primary Tillage System is changing fall tillage. This exciting new concept eliminates stalk shredding and extra seedbed preparation trips. By managing residue in the fall and leaving a more level fall seed bed condition, the DOMINATOR sets the stage for fast efficient spring seedbed trips and maximum yields.

Specifications

Working width (m) 5
Working width (feet) 16' 6"
Number of coulters 23
Coulter size (cm) 63.5
Coulter size (in) 25"
Number of wheels 6
Number of Shanks 11
Shanks spacing (cm) 45.7
Shanks spacing (in) 18"
Number of Subsoil Shanks 5
Number of Chisel Shanks 6
Transport width (m) 4.5
Transport width (feet) 14' 10"
Transport Height (m) 3.7
Transport Height (feet) 12' 3"
Number of sections 3
Type of folding Hydraulic
Frame type Folding
Weight (kg) 8857
Weight (lb) 19528
Minimum working depth (cm) 20.3
Maximum working depth (cm) 40.6
Working depth (min.) (inches) 8"
Working depth (max.) (inches) 16"
Tractor Power (kW) between 280 and 391
Tractor Power (hp) between 330 and 522
