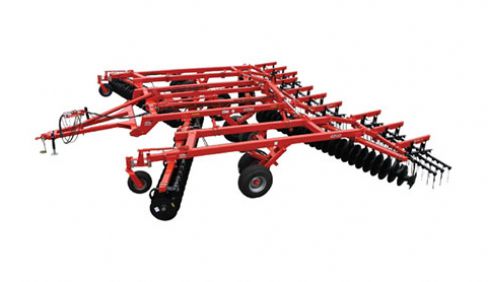

Tandem Disc Harrows TDH 8200-38Q
Features
The 8200 Series Rock-Flex Disc Harrows raise the bar for performance and features in Class II, all-purpose tandem discs. Offered in sizes 19' through 38', the 8200 discs are a perfect match for MFWD, 4WD and track-type tractors. With Residue Razor® disc blades, aggressive gang angles and increased weight per blade, the 8200 provides superior residue cutting, mixing and soil penetration.
Specifications
| Working width (m) | between 11,5 and 11,7 |
| Working width (feet) | 37' 8"-38' 6" |
| Working width (m) | 6 |
| Working width (feet) | 19.75 |
| Number of discs | 62 |
| Number of discs | between 106 and 118 |
| Disc diameter (cm) | 55,8 |
| Disc diameter (in) | 22" |
| Disc Spacing (cm) | between 20,3 and 23,1 |
| Disc Spacing (in) | 8" or 9.125" |
| Number of wheels | 10 |
| Number of bearing arms | 32 |
| Transport width (m) | 5.3 |
| Transport width (feet) | 17' 5" |
| Transport Height (m) | 4 |
| Transport Height (feet) | 13' 5" |
| Number of sections | 5 |
| Frame type | Quad Fold |
| Weight (kg) | between 9635 and 9984 |
| Weight (lb) | between 21842 and 22379 |
| Tractor Power (kW) | between 198 and 258 |
| Tractor Power (hp) | between 266 and 347 |
| Maximum authorised tractor power (kW) | 258 |
| Maximum Authorised Tractor Power (hp) | 347 |
