Kuhn TDH 8200-36 / NOT AVAILABLE

Double tap to zoom



Features

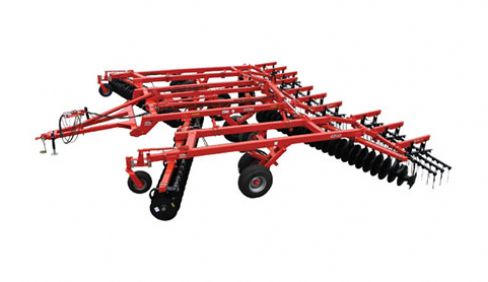

The 8200 Series Rock-Flex Disc Harrows raise the bar for performance and features in Class II, all-purpose tandem discs. Offered in sizes 19' through 38', the 8200 discs are a perfect match for MFWD, 4WD and track-type tractors. With Residue Razor® disc blades, aggressive gang angles and increased weight per blade, the 8200 provides superior residue cutting, mixing and soil penetration.

Specifications

Working width (m) between 10,8 and 11,1
Working width (feet) 35' 8"-36' 5"
Working width (m) 6
Working width (feet) 19.75
Number of discs 62
Number of discs between 98 and 114
Disc diameter (cm) 55,8
Disc diameter (in) 22"
Disc Spacing (cm) between 20,3 and 23,1
Disc Spacing (in) 8" or 9.125"
Number of wheels 8
Number of bearing arms 26
Transport width (m) 5.1
Transport width (feet) 16' 9"
Transport Height (m) 4.7
Transport Height (feet) 15' 6"
Number of sections 3
Frame type Folding
Weight (kg) between 8249 and 8660
Weight (lb) between 18186 and 19093
Tractor Power (kW) between 187 and 239
Tractor Power (hp) between 252 and 321
Maximum authorised tractor power (kW) 239
Maximum Authorised Tractor Power (hp) 321
