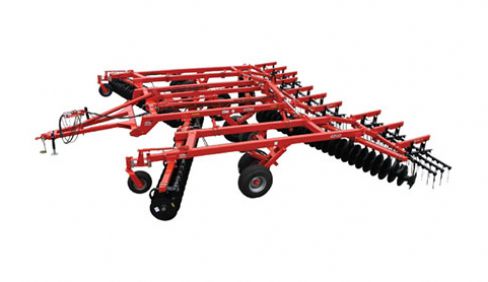

Kuhn TDH 8200-34 / NOT AVAILABLE

Double tap to zoom



Features

The 8200 Series Rock-Flex Disc Harrows raise the bar for performance and features in Class II, all-purpose tandem discs. Offered in sizes 19' through 38', the 8200 discs are a perfect match for MFWD, 4WD and track-type tractors. With Residue Razor® disc blades, aggressive gang angles and increased weight per blade, the 8200 provides superior residue cutting, mixing and soil penetration.

Specifications

Working width (m) between 10,3 and 10,4
Working width (feet) 33' 10"-34' 2"
Working width (m) 6
Working width (feet) 19.75
Number of discs 62
Number of discs between 94 and 106
Disc diameter (cm) 55,8
Disc diameter (in) 22"
Disc Spacing (cm) between 20,3 and 23,1
Disc Spacing (in) 8" or 9.125"
Number of wheels 8
Number of bearing arms 26
Transport width (m) 5.1
Transport width (feet) 16' 9"
Transport Height (m) 4.5
Transport Height (feet) 14' 9"
Number of sections 3
Frame type Folding
Weight (kg) between 7797 and 8049
Weight (lb) between 17189 and 17744
Tractor Power (kW) between 177 and 229
Tractor Power (hp) between 238 and 308
Maximum authorised tractor power (kW) 229
Maximum Authorised Tractor Power (hp) 308
