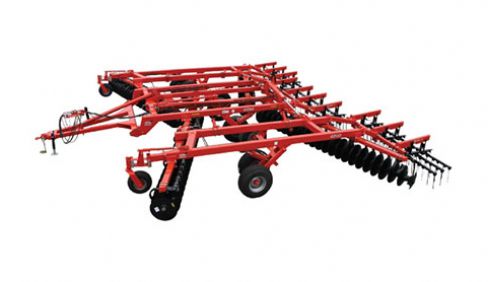

Kuhn TDH 8200-28 / NOT AVAILABLE

Double tap to zoom



Features

The 8200 Series Rock-Flex Disc Harrows raise the bar for performance and features in Class II, all-purpose tandem discs. Offered in sizes 19' through 38', the 8200 discs are a perfect match for MFWD, 4WD and track-type tractors. With Residue Razor® disc blades, aggressive gang angles and increased weight per blade, the 8200 provides superior residue cutting, mixing and soil penetration.

Specifications

Working width (m) between 8,6 and 8,8
Working width (feet) 28' 5"-28' 10"
Working width (m) 6
Working width (feet) 19.75
Number of discs 62
Number of discs between 78 and 90
Disc diameter (cm) 55,8
Disc diameter (in) 22"
Disc Spacing (cm) between 20,3 and 23,1
Disc Spacing (in) 8" or 9.125"
Number of wheels 8
Number of bearing arms between 22 and 26
Transport width (m) 5.1
Transport width (feet) 16' 9"
Transport Height (m) 3.8
Transport Height (feet) 12' 6"
Number of sections 3
Frame type Folding
Weight (kg) between 6851 and 7152
Weight (lb) between 15103 and 15767
Tractor Power (kW) between 146 and 191
Tractor Power (hp) between 196 and 256
Maximum authorised tractor power (kW) 191
Maximum Authorised Tractor Power (hp) 256
