Call UsKuhn FC 313 TG/RTG / NOT AVAILABLE

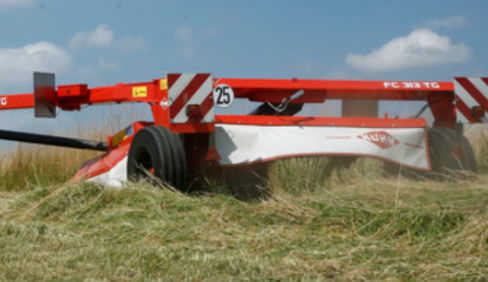

Side Pull Disc Mower Conditioner FC 313 TG/RTG
Features
GYRODINE® swivel hitch - Compact and low profile cutter-bar - Conditioning with V-shaped nylon fingers or roller conditioner - Centralized suspension adjustment - Centralized adjustment of the cutting height with indicator - Reduced maintenance - Large wheels - Wide spreading - Conveyor belt (FC 313 TG RA).
Specifications
| Working width (m) | 3.11 |
| Working width (inches) | 10'2" |
| Transport width (m) | 3.3 |
| Transport width (feet) | 10'10" |
| Number of discs with protecting skids | 8 |
| PTO speed (rpm) | 540 (1000 possible by inverting gearboxes) |
| Swath width (m) | 1.3 - 2.1 |
| Conditioning | With V-shaped nylon fingers. adjustable flap and comb |
| Conditioning rotor speed (rpm) | 615/1000 |
| Swath width (feet) | 4'3' - 6'11" |
| Weight approx. (kg) | 1525 (TG) - 1655 (RTG) |
| Weight (lb) | 3355 (TG) - 3641 (RTG) |
| Minimum power requirement for PTO (kW) | 58 |
| Minimum power requirement for PTO (hp) | 80 |
| Tractor hydraulic equipment | 1 SA + 1 DA |
