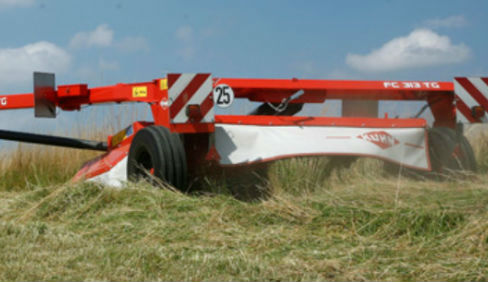

Side Pull Disc Mower Conditioner FC 303 GL
Features
New GYRODINE® head-stock - Compact and profiled disc cutter-bar - free swinging finger or rubber roller conditioner - Constant suspension offering a very large travel range - Suspension adjustment using a single crank - Centralized cutting height setting with direct readout - All rotating components are rubber-mounted - Very little maintenance.
Specifications
| Working width (m) | 3 |
| Working width (inches) | 9'10" |
| Transport width (m) | 3 |
| Transport width (feet) | 9'10" |
| Number of discs with protecting skids | 6 |
| PTO speed (rpm) | 1000 |
| Swath width (m) | 1 - 1.8 |
| Conditioning | With free swinging flail fingers or rubber rollers |
| Conditioning rotor speed (rpm) | 660/1000 |
| Swath width (feet) | 3'4" - 6' |
| Weight approx. (kg) | 2120 |
| Weight (lb) | 4664 |
| Minimum power requirement for PTO (kW) | 59 |
| Minimum power requirement for PTO (hp) | 80 |
| Tractor hydraulic equipment | 1 double acting valve + 1 single acting valve |
