Call UsKuhn FC 243 TG/RTG / NOT AVAILABLE

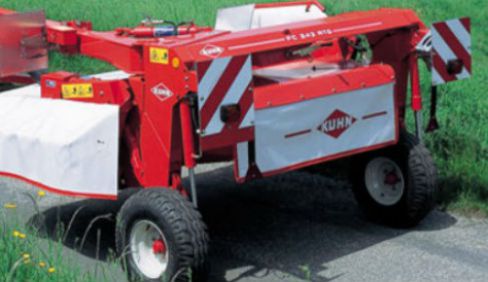

Side Pull Disc Mower Conditioner FC 243 TG/RTG
Features
GYRODINE swivel hitch - Compact and low profile cutter-bar - Conditioning with V-shaped nylon fingers or roller conditioner - Centralized suspension adjustment - Centralized adjustment of the cutting height with indicator - Reduced maintenance - Wide spreading (FC 243 TG)
Specifications
| Working width (m) | 2.4 |
| Working width (inches) | 7'10" |
| Transport width (m) | 2.5 |
| Transport width (feet) | 8'2" |
| Number of discs with protecting skids | 6 |
| PTO speed (rpm) | 540 (1000 possible by inverting gearboxes) |
| Swath width (m) | 0.9 - 1.4 |
| Conditioning | With V-shaped nylon fingers. adjustable plate. retractable comb or rollers |
| Conditioning rotor speed (rpm) | 615/888 |
| Swath width (feet) | 2'11" - 4'7" |
| Weight approx. (kg) | 1395 (TG) - 1495 (RTG) |
| Weight (lb) | 3075 (TG) - 3296 (RTG) |
| Minimum power requirement for PTO (kW) | 44 |
| Minimum power requirement for PTO (hp) | 60 |
| Tractor hydraulic equipment | 1 double acting valve + 1 single acting valve |
