Call UsKuhn FC 313 / NOT AVAILABLE

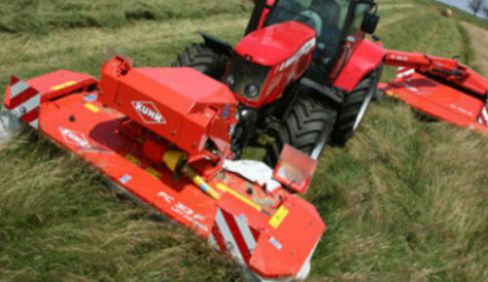

Mounted Disc Mower Conditioners FC 313
Features
Rear 3-point hitch mounted - Conditioning rotor with nylon fingers or pivoting steel fingers offering numerous adjustment possibilities - Non-Stop safety release activated by pivoting the mowing unit rearwards - Reinforced disc cutter-bar - Central articulation and LIFT CONTROL® hydro-pneumatic suspension - Built-in hydraulic lift - Setting to transport position by pivoting rearwards - Suspension during transport - Integrated wide spreading equipment.
Specifications
| Working width (m) | 3.11 |
| Working width (inches) | 10'2" |
| Number of discs with protecting skids | 8 |
| PTO speed (rpm) | 1000 |
| Swath width (m) | 1.2 - 3 |
| Conditioning | With V-shaped nylon fingers or pivoting steel fingers. adjustable plate. retractable comb or rollers |
| Conditioning rotor speed (rpm) | 615/888 |
| Swath width (feet) | 3'9" - 9'8" |
| Weight approx. (kg) | 1115 |
| Weight (lb) | 2453 |
| Minimum power requirement for PTO (kW) | 75 |
| Minimum power requirement for PTO (hp) | 100 |
| Tractor hydraulic equipment | 1 double acting valve + 1 single acting valve |
