Call UsKuhn FC 353 GC/RGC / NOT AVAILABLE

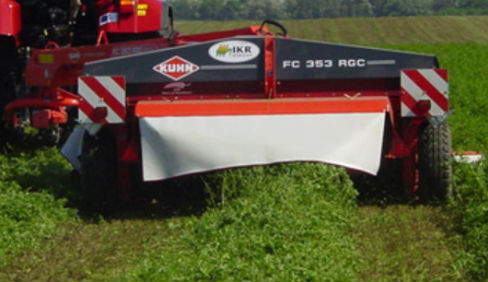

Center Pivot Disc Mower Conditioner FC 353 GC/RGC
Features
Central draw-bar allows two-way mowing - New GYRODINE® head-stock - Compact and profiled disc cutter-bar - Free swinging finger or rubber roller conditioner - Constant suspension offering a very large travel range - Suspension adjustment using a single crank - Centralized cutting height setting with direct readout - Main drive via belt - All rotating components are rubber-mounted - Very little maintenance.
Specifications
| Working width (m) | 3.5 |
| Working width (inches) | 11'6" |
| Transport width (m) | 3.5 |
| Transport width (feet) | 11'6" |
| Number of discs with protecting skids | 7 |
| PTO speed (rpm) | 1000 |
| Swath width (m) | 1.1 - 2.7 |
| Conditioning | With free swinging flail fingers or rubber rollers |
| Conditioning rotor speed (rpm) | 600/850/1000 |
| Swath width (feet) | 4' - 9' |
| Weight approx. (kg) | 2500 (GC) - 2600 (RGC) |
| Weight (lb) | 5500 (GC) - 5720 (RGC) |
| Minimum power requirement for PTO (kW) | 66 |
| Minimum power requirement for PTO (hp) | 90 |
| Tractor hydraulic equipment | 1 double acting valve + 1 single acting valve |
