Features
Easy To Operate

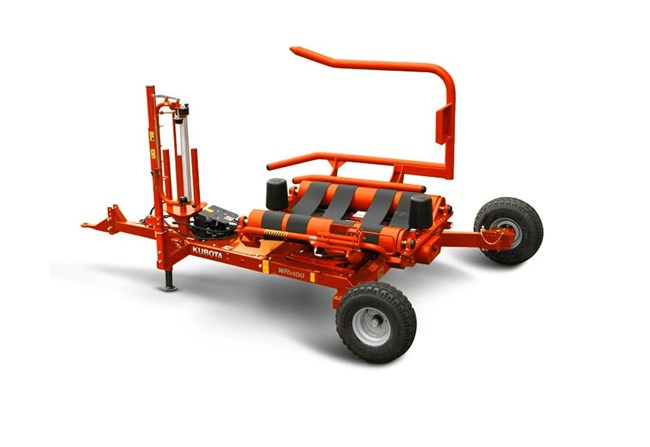

The Kubota WR1400 is a pull-type wrapper designed for smaller tractors. The machine is very easy to operate. A fully automatic film cutter comes standard on all models.
Turntable Principle
The turntable with two driven rollers is designed for high bale stability and smooth, even rotation. This ensures consistent bale rotation even in the most difficult of conditions.
Extendable Wheel Arm
To allow for increased stability during bale loading, an extendable wheel arm was incorporated into the frame design. This allows bales up to 2650 lbs. to be loaded without any counter weight on the machine.
Gentle Unloading
Wide spaced wheels allow for an exceptionally low turntable height. This design allows the table to be tilted downward until it nearly touches the ground, reducing drop height when unloading bales. This provides the gentlest possible handling of wrapped bales. It reduces the chance of film damage and eliminates the need for a fall damper or drop mat. Additionally, it can be fitted with a bale on end kit, which allows the bale to be tipped off gently without damage to the bale.
Narrow Transport Width
For narrow transport width, the right hand wheel is turned to the inside of the support arm.
Specifications
Transport Length ft. | Transport Length ft.14.17' | |
---|---|---|
Transport Width ft. | Transport Width ft.8.25' | |
Transport Height in. | Transport Height in.76" | |
Weight lbs. (kg) | Weight lbs. (kg)2249 | |
Max Bale Size (L x D) in. | Max Bale Size (L x D) in.47" x 50" | |
Max Bale Weight lbs. | Max Bale Weight lbs.2650 | |
Mounted Wrapper | Mounted WrapperNot Available | |
Pull-Type Wrapper | Pull-Type WrapperStandard | |
Support Rollers/Belts (number) | Support Rollers/Belts (number)2/4 | |
Automatic Film Cutter | Automatic Film CutterStandard | |
Max. Wrapping Speed rpm. | Max. Wrapping Speed rpm.30 | |
1 Pre-Stretcher 750mm | 1 Pre-Stretcher 750mmStandard | |
Pre-Stretcher 29.5" (750mm) | Pre-Stretcher 29.5" (750mm)Standard | |
Manual Cable Control (M) | Manual Cable Control (M)Standard | |
Electro Hydraulic Joystick (J) | Electro Hydraulic Joystick (J)Standard | |
Programmable Computer (C) | Programmable Computer (C)Not Available | |
Remote Control (C) | Remote Control (C)Not Available | |
Oil Consumption (l/min) | Oil Consumption (l/min)28 | |
Wheels and Axles | 10.0/80-12 | Wheels and Axles | 10.0/80-12Standard | |
Fill Roll Magazine | Fill Roll MagazineOptional | |
Adapter Kit for 20" (500mm) Film Spool | Adapter Kit for 20" (500mm) Film SpoolOptional | |
Bale and Wrap Counter | Bale and Wrap CounterStandard | |
Auto-Stop at End of Wrapping Cycle | Auto-Stop at End of Wrapping CycleStandard | |
Film End/Tear Sensor (C) | Film End/Tear Sensor (C)Not Available | |
Road Lights | Road LightsOptional |
