Features
Wrapping at Storage Site

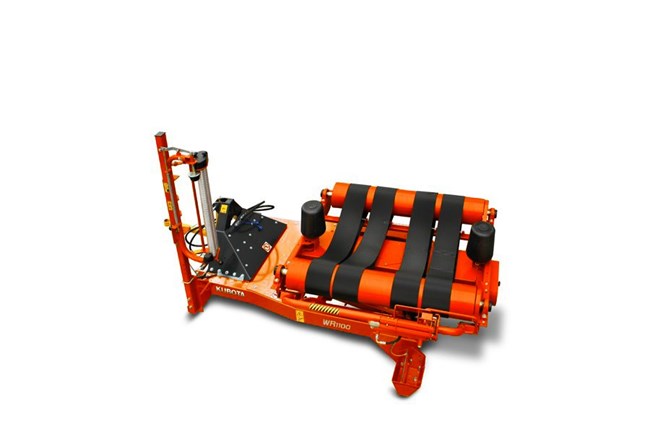

Kubota WR1100 series are three-point mounted wrappers with a simple but very reliable way of wrapping silage bales. When the bale is being transported to the storage site for wrapping, this three-point mounted version is the ideal solution. It can be mounted on the rear or front hydraulics of the tractor or used as a static machine with an external power pack unit.
Easy Operation
The entire wrapping process of the Kubota WR1100 can be controlled remotely from the loading tractor with the optional remote control. One operator can do the entire process of loading, wrapping and stacking. Once the wrapping process is activated with the push of a button, the whole operation runs automatically. Push the button again to unload the wrapped bale. An optional automatic stop ensures that the bale is properly wrapped.
Remote Control
The Kubota WR1100 is operated via computer controls with an integrated bale counter. A remote control is available as an option, making it the ideal solution for static use.
Specifications
Transport Length ft. | Transport Length ft.9' | |
---|---|---|
Transport Width ft. | Transport Width ft.5.25' | |
Transport Height in. | Transport Height in.69" | |
Weight lbs. (kg) | Weight lbs. (kg)1653 | |
Max Bale Size (L x D) in. | Max Bale Size (L x D) in.47" x 50" | |
Max Bale Weight lbs. | Max Bale Weight lbs.2650 | |
Mounted Wrapper | Mounted WrapperStandard | |
Pull-Type Wrapper | Pull-Type WrapperNot Available | |
Support Rollers/Belts (number) | Support Rollers/Belts (number)2/4 | |
Automatic Film Cutter | Automatic Film CutterStandard | |
Max. Wrapping Speed rpm. | Max. Wrapping Speed rpm.30 | |
1 Pre-Stretcher 750mm | 1 Pre-Stretcher 750mmStandard | |
Pre-Stretcher 29.5" (750mm) | Pre-Stretcher 29.5" (750mm)Standard | |
Manual Cable Control (M) | Manual Cable Control (M)Not Available | |
Electro Hydraulic Joystick (J) | Electro Hydraulic Joystick (J)Not Available | |
Programmable Computer (C) | Programmable Computer (C)Standard | |
Remote Control (C) | Remote Control (C)Optional | |
Oil Consumption (l/min) | Oil Consumption (l/min)28 | |
Wheels and Axles | 10.0/80-12 | Wheels and Axles | 10.0/80-12Not Available | |
Fill Roll Magazine | Fill Roll MagazineNot Available | |
Adapter Kit for 20" (500mm) Film Spool | Adapter Kit for 20" (500mm) Film SpoolOptional | |
Bale and Wrap Counter | Bale and Wrap CounterStandard | |
Auto-Stop at End of Wrapping Cycle | Auto-Stop at End of Wrapping CycleStandard | |
Film End/Tear Sensor (C) | Film End/Tear Sensor (C)Optional | |
Road Lights | Road LightsNot Available |
