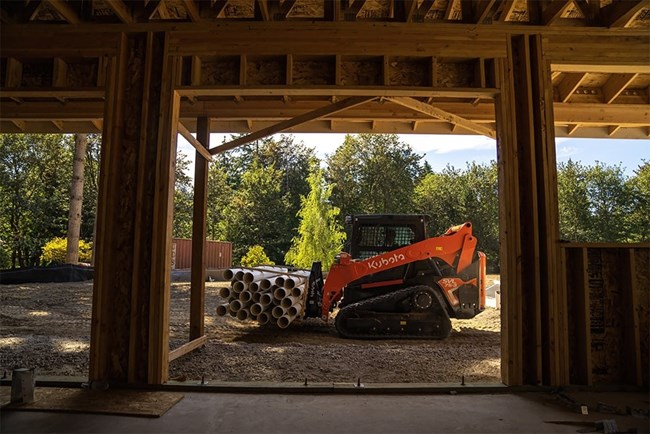

Kubota SVL75-3



Features

Standard 2-Speed Travel and Selectable One-Way Self-Level

Shift from low gear to high gear to get the job done faster. One-way hydraulic self-leveling can be engaged at the flip of a switch and helps keep the bucket or pallet forks in a horizontal position without the need to manually adjust the angle during lifting.

Available with Low Effort Hydraulic Pilot Controls

Work next to home structures and curbs with confidence. Different from Electro-Hydraulic Controls, these hydraulic controls provide maximum feel and precision – with no adjustments or settings necessary. Start moving when you think you’re going to start, and stop moving when you think you’re going to stop.

Advanced Auto Downshift

The Advanced Auto Downshift system from Kubota Compact Track Loader automatically downshifts from high to low gear while making turns, providing the maximum amount of torque needed when exiting a turn.

One-piece, Sealed Cab

The SVL75-3 is equipped with Kubota’s new one-piece sealed cab that helps prevent dirt, dust, rain and debris from entering the operator space while also reducing noise levels.

Optional Reversing Fan

The addition of a reversible fan helps disperse dirt and debris that can collect in the cooling system.

Advanced Multi-Function Valve

Enhances simultaneous operations, dramatically increasing the productivity of the bucket, and any AUX hydraulic attachment

Wider Cab Entrance

The wide cab entrance, with a 36” side-screen to side-screen width, allows operators to comfortably pivot when looking to their rear. In addition, a high back seat provides back support from shoulders to lower torso. A comfortable operator is a productive operator.

Standard Rear-view Camera

The new rear-view camera is integrated into the rear bonnet and offers a 176° range of rearward visibility, and is displayed on the new 7” touch screen.

7” Touch Screen

A new 7-inch color LCD touch panel with jog dial comes standard in the SVL75-3. The LCD panel gives operators access to a wide range of functions and vital information, like battery charge, hydraulic oil and coolant temperature, auxiliary mode and fuel level, and is also where the standard rear-view camera is displayed.

Easy-Opening Sliding Front Door

When equipped with a cab enclosure, the cab door slides up and down to improve ingress and egress. Operators can pin the door in the open position and continue to operate with the door open, so there is no need to remove the door and store it where it can get lost or damaged. Front doors can be opened regardless of the loader position.

Specifications

Specifications
Horsepower (gross)Horsepower (gross)74.3
Displacement cu. in. (cc)Displacement cu. in. (cc)203.3
Overall Length, ft (mm)Overall Length, ft (mm)142.1 (3609)
Overall Height, ft (mm)Overall Height, ft (mm)81.8 (2078)
Overall Width, ft (mm)Overall Width, ft (mm)Vehicle Width Standard Track / Wide Track, ft (mm): 65.9 (1675) / 69.1 (1755), Width with Bucket, ft (mm): 68 (1727)
Operating Weight, lbs (kg)Operating Weight, lbs (kg)9190 (4169) / 9420 (4273)
Operator StationOperator StationOpen cab / closed cab
Rated Operating Capacity (ROC), lbs (kg)Rated Operating Capacity (ROC), lbs (kg)2490 (1043)
Tipping Load, lbs (kg)Tipping Load, lbs (kg)7112 (3226)
Bucket Breakout Force, lbf (kg)Bucket Breakout Force, lbf (kg)6191 (2808)
Lift Arm Breakout Force, lbf (kg)Lift Arm Breakout Force, lbf (kg)4723 (2142)
Lift Arm PathLift Arm PathVertical
Track Width (standard/wide), in. (mm)Track Width (standard/wide), in. (mm)12.6 (320) / 15.8 (400)
Ground Contact Pressure, psi (kPa)Ground Contact Pressure, psi (kPa)Standard: 5.8 (40) / 5.9 (40.7) Wide: 4.7/4.8
Track Rollers (per side)Track Rollers (per side)4
Track Ground Contact Length, in. (mm)Track Ground Contact Length, in. (mm)56.5 (1436)
Traveling Speed: High, mph (kph)Traveling Speed: High, mph (kph)8.6 (13.7)
Traveling Speed: Low, mph (kph)Traveling Speed: Low, mph (kph)5.6 (9.0)
Traction Force, lbf (kgf)Traction Force, lbf (kgf)9678 (4390)
Ground Clearance, in (mm)Ground Clearance, in (mm)11.7 (296)
Auxiliary Hydraulic Pressure, psi (bar)Auxiliary Hydraulic Pressure, psi (bar)3185 (224.0)
Auxiliary Hydraulics Flow Rate, GPM (LPM)Auxiliary Hydraulics Flow Rate, GPM (LPM)19.2 (72.7) / 29.8 (112.8)
Height to Hinge Pin, in (mm)Height to Hinge Pin, in (mm)122.7 (3117)
Ground Pressure, (psi)Ground Pressure, (psi)Standard: 5.8/5.9 Wide: 4.7/4.8
