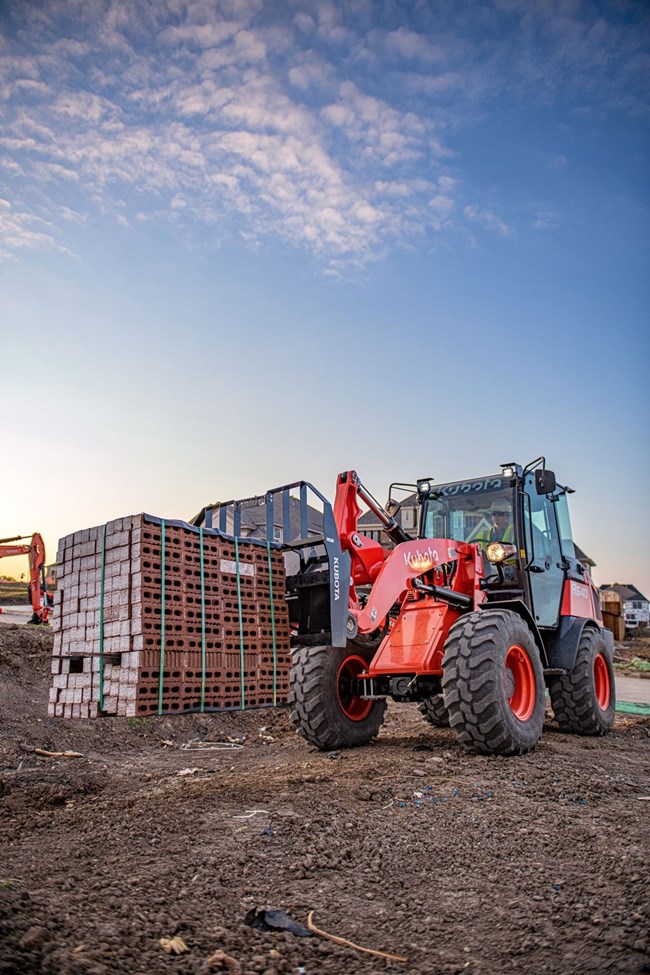

Kubota R640

Double tap to zoom



Features

New Features

  • High Visibility Cab - enlarged front glass, full size right side window
  • LED Working Lights - moved from Halogen to LED lights; LED lights now standard
  • NEW Delta Shaped Loader Arms - Improves visibility when attaching to an implement or attachment; Also, improves strength and rigidity of the loader arms
  • More Spacious Cab - moved switch console from the steering column to the right side of the cab - enhancing leg and foot space in the cab
  • Reconfigured Console & Switch Layout - switch console now on the right side of the cab; everything needed to operate and run the wheel loader is now located on the right hand side and is a fingertip away

Serviceability

Machine features a large rear hood for easy engine access. The engine bonnet at the rear opens wide, providing quick and easy access to the machine’s main service areas.

Comfort

  • Multifunction control lever to help optimize speed
  • ISO mounted cab to reduce noise and increase productivity
  • Full suspension seat
  • Optional cab with air conditioning
  • Inching pedal is an option to increase efficiency during loading operations
  • Tilt wheel  that accommodates drivers of all sizes comfortably

Kubota Engine with Automatic Regeneration

The Common Rail System electronically controls the fuel injection timing and amount in stages, rather than all at once, for optimal combustion. The results are great efficiency, better fuel economy and less engine noise. Its combination with the Exhaust Gas Recirculation (EGR) and Diesel Particulate Filter (DPF) Muffler reduces emissions to make the R530 Tier 4 Final compliant.

Kubota’s original automatic regeneration system automatically burns accumulated particulate matter (soot) in the DPF muffler to keep it clean. For operational reasons, regeneration can be turned off and manually accomplished at a more appropriate time.

AUX Service Ports

Conveniently located on the rear of the attachment quick coupler flat face, no drip couplers provide easy access to power your hydraulic attachments. Auxiliary ports are plumbed separately from hydraulic quick coupler plumbing.

Hybrid Link Design

The well balanced cylinder position of the Kubota Z link system combines the advantages of both Z link and parallel link systems. You get strong bucket force when excavating and grading, and a lift path almost parallel to the ground for superior reach and lifting.

Articulating and Oscillating Frame

Our wheel loaders are most often operated in heavy terrain, so we include features for top performance in these conditions. Articulation allows the rear tires to follow the same track path as the front tires for greater maneuverability and control of the loader. Rear frame oscillation is intentionally chosen over rear axle oscillation for superior workability in uneven ground conditions.

Specifications

Specifications
EngineEngineV2607
Emission CertificationEmission CertificationTier 4 Final
Output (SAE J1995 gross) HP/(kW)/rpmOutput (SAE J1995 gross) HP/(kW)/rpm64.3 (48) / 2400
Output (SAE J1349 net) HP/(kW)/rpmOutput (SAE J1349 net) HP/(kW)/rpm61.1 (45.6) / 2400
Displacement (cu. in.)Displacement (cu. in.)160
Transmission TypeTransmission TypeHydrostatic transmission
Overall Length, ft (mm)Overall Length, ft (mm)18ft 0in (5483)
Overall Width, ft (mm)Overall Width, ft (mm)5ft 11in (1800)
Overall Height, ft (mm)Overall Height, ft (mm)8ft 2in (2478) / 8ft 2in (2498)
Ground Clearance, in (mm)Ground Clearance, in (mm)13in (330)
Auxiliary Hydraulics Flow Rate, GPM (LPM)Auxiliary Hydraulics Flow Rate, GPM (LPM)17.8 (67.2)
Auxiliary Hydraulic Pressure psi, kgf (cm2)Auxiliary Hydraulic Pressure psi, kgf (cm2)2973 (20.5)
Standard Tire Size, inStandard Tire Size, in12.5-18
Traveling Speed: High, mph (kph)Traveling Speed: High, mph (kph)12.4 (20.0)
Traveling Speed: Low, mph (kph)Traveling Speed: Low, mph (kph)3.0 (4.8)
Traction Force, lbs (kgf)Traction Force, lbs (kgf)8588
Front/Rear Axle Traction LockFront/Rear Axle Traction LockDiff-lock (both axles)
Articulation Angle (deg.)Articulation Angle (deg.)40 (each direction)
Angle of Rear Frame Oscillation (deg.)Angle of Rear Frame Oscillation (deg.)±8
Loader Clearance Circle, ft (mm)Loader Clearance Circle, ft (mm)13ft 10in (4221)
Turning Radius Track Circle, ft (mm)Turning Radius Track Circle, ft (mm)12ft 0in (3664)
Brakes (Service)Brakes (Service)Enclosed wet disc
Tipping Load- Full Turn, lbs (kg)Tipping Load- Full Turn, lbs (kg)6526 (2960)/6812 (3090) / 5115 (2320)/5313 (2410)
Tipping Load - Straight, lbs (kg)Tipping Load - Straight, lbs (kg)7452 (3380)/7760 (3520) / 5820 (2640)/6063 (2750)
Rated Operating Capacity, (ROC)Rated Operating Capacity, (ROC)3263/3406/1545/2550/2657
Standard Bucket Capacity, yd3Standard Bucket Capacity, yd30.94
Bucket Breakout Force, lbs (kN)Bucket Breakout Force, lbs (kN)9869 (43.9)
Lifting Capacity at Ground Level, lbs (kN)Lifting Capacity at Ground Level, lbs (kN)8161 (36.3)
Loader Raise / Lower Time, secLoader Raise / Lower Time, sec5.8 / 3.9
Fuel Tank, gal (l)Fuel Tank, gal (l)18.5 (70)
Hydraulic System, gal (l)Hydraulic System, gal (l)15.1 (57)
Hydraulic Reservoir, gal (l)Hydraulic Reservoir, gal (l)10.3 (39)
Operating Weight, lbs (kg)Operating Weight, lbs (kg)11177 (5070) / 11563 (5245)
Hinge Pin Height, ftHinge Pin Height, ft10ft 8in
Dump Height at Fully Raised Position, ftDump Height at Fully Raised Position, ft8ft 3in
Maximum Dump AngleMaximum Dump Angle45 degrees
Reach Fully Raised at Maximum Dump Angle, ftReach Fully Raised at Maximum Dump Angle, ft2ft 6in
Steering AngleSteering Angle40 degrees
Frame Oscillation AngleFrame Oscillation Angle8 degrees
