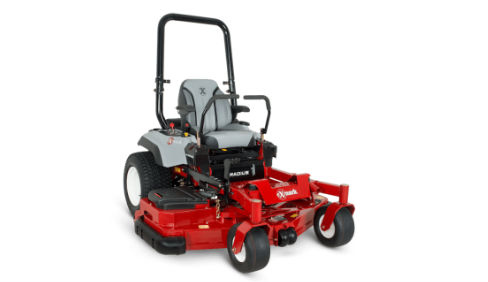

Mowers RAS740GKC60R00 / NOT AVAILABLE

Double tap to zoom



Features

Heavy Duty Unibody Frame

Fully-welded using 2-inch by 3-inch frame tubes, the Radius frame design places major components including the engine, hydro drive and fuel tank lower, with better mass centralization. This gives the Radius increased hillside traction and stability, with heightened maneuverability.

Quick Adjustable Rollover Protection System (ROPS)

Uses an easy-to-fold up-and-down design built from round tubes and provides flexibility for placement of accessories.

Fuel Gauge Window

Easy-to-use, accurate sight window-type fuel gauge is standard on all Radius models.

Height of Cut Made Easy

The height of cut is positioned to provide an open operator platform that allows the operator to quickly locate the preferred cut position when viewing from the top down.

Adjustable Isolation Technology

Designed to offer increased operator isolation from vibration and bumps, Exmark’s exclusive adjustable seat isolation technology uses rubber isolation bumpers to suspend the operator seat above the chassis.

Seat Flip-Up

Provides increased service access to fuel system and engine compartment or help keep the seating surface cool and dirt free when not in use.

Radius Rear Discharge Deck

Available in 60-inch cutting width, the rear-discharge deck offers increased clipping discharge control, reduced noise, and the ability to trim on both sides of the cutting deck—all while keeping the operator clean.

Specifications

Equipment
Blade Spindles No maintenance, sealed and non-greasable spindles; 7.50"-diameter cutter housing contains 17mm (.67")diameter spindle shaft and hex blade drive.
Drive Tires 23 x 10.5-12 K500
Cup Holder Standard
Tractor Frame Unibody, welded, heavy-duty 2" X 3" rectangular tubular steel.
Steering Control Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.
Front Caster Tires 13 x 6.5-6, smooth tread, pneumatic. Caged Roller Bearings
Parking Brake Lever-actuated pawl brake.
Seat High back seat with foam padded seat cushion , armrests, integral safety switch, and adjustable Seat Isolation System
Electrical 12-volt battery with 15-amp alternator.
Power Components
Engine Brand Kohler®
Engine Model ZT740
Engine Displacement 747
Engine Series Confidant™
Engine Type Carbureted
Engine Speed 3,700 rpm
Air Filter Cyclonic Air Cleaner
Fuel Type Gas Carbureted
Fuel Capacity 7-gallon (26.5-L) single fuel tank with single fill location.
Fuel Indicator Translucent Visual
Drive Hydro-Drive
Drive Description Dual Hydro Gear ZT3400, hydrostatic transmission with charge pumps, relief valves and independent, replaceable filters.
Speed Infinitely variable speed selection from 0-9.0 mph (14.5 kmph) forward, 0-5.0 mph (8.0 kmph) reverse.
Carb Compliant No
Deck Lift Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
Safety Package Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
ROPS 2-post foldable ROPS standard with seat belt and latch.
PTO Engagement MagStop electromagnetic 125-ft-lb clutch
Drive Wheel Release Allows unit movement without engine running.
Casters .375" thick caster yoke arms
Decks
Width / Cutting Deck 60"
Deck Style Floating Deck
Deck Style Description Full-floating UltraCut Rear Discharge Deck. Rear-discharge standard with option to mulch.
Deck Construction 10-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge high strength alloy side skirt.
Blade Tip Speed Approximately 18,500 fpm.
Cutting Heights 1.5" (3.8 cm) to 5.0" (12.7 cm) in 0.25" (.6 cm) increments, adjustable from operator's seat.
Blades 3 Blades at 20.50" Length
Dimensions
Width 66.0 in ( 167.6 cm)
Length 84.3 in (214.1 cm)
Height 70.2 inches (178.3 cm)
Curb Weight 1012
