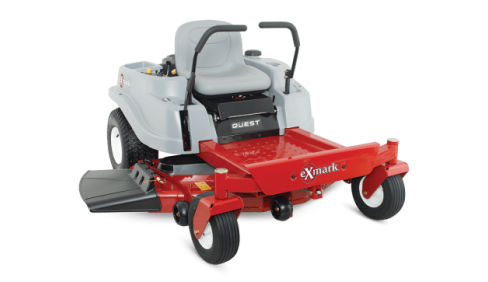

Mowers QTE452CEM42100 / NOT AVAILABLE

Double tap to zoom



Features

Superior Handling

The Quest is designed with its heaviest components mounted low in the frame, toward the center of the machine. This low center of gravity improves handling and traction.

New Deck Size

In addition to the 42-inch deck, the Quest E-Series is now available with a 54-inch deck.

Standard Rear Engine Guard

Provides added production to the engine components from damage by brush and debris.

Simple Adjustment

With a single-point height adjust, it’s easy to adjust the Quest’s cutting deck.

Automatic Braking System

For added safety, whenever the Quest’s controls are positioned outward, its parking brake is applied automatically.

Exmark Engines

Built precisely to our specifications allowing us to control engine quality from start to finish. Super-quick and easy oil drain system, and an advanced air intake system specially designed to decrease dirt ingestion and increase performance.

Specifications

Equipment
Blade Spindles No maintenance, sealed and non-greasable spindles; 5.50"-diameter cutter housing with 0.67"-diameter spindle shaft.
Drive Tires 18 x 7.50-8, 2-ply Turf Tech TL
Cup Holder Standard
Tractor Frame Unibody, Riveted 10 ga. Steel
Steering Control Hydraulically dampened twin levers, adjustable both fore and aft. Levers are also adjustable to 2 height positions.
Front Caster Tires 11 x 4-5 ribbed tread, pneumatic
Parking Brake Automatic-actuated pawl brake.
Seat High Back foam padded with armrests. Hinged mounting, spring suspension. \nAdjustment: Fore and aft 3 in. by loosening 2 bolts and sliding seat.
Electrical 12-volt battery with 15-amp alternator.
Power Components
Engine Brand Exmark
Engine Model 452
Engine Displacement 452
Engine Series Single
Engine Type Carbureted
Engine Speed 3,300 rpm
Air Filter Standard Engine Manufacturer's air filter
Fuel Type Gas Carbureted
Fuel Capacity High-capacity, 2.9-gallon (11.0-L), single fuel tank with single fill location.
Fuel Indicator Translucent Visual
Drive Hydro-Drive
Drive Description Two Hydro-Gear ZT2100 hydro static transmissions with no hoses, integrated cooling fans, integrated reservoir.
Speed Infinitely variable speed selection from 0-7 mph (11.3 km/h) forward. 0-3.4 mph (5.5 km/h) reverse.
Carb Compliant Yes
Deck Lift Standard; lever lift.
Safety Package Operator Presence Controls (OPC) and drive system interlock.
ROPS None
PTO Engagement MagStop electromagnetic 80-ft-lbs clutch
Drive Wheel Release Allows unit movement without engine running.
Casters .25" thick caster yoke arms
Decks
Width / Cutting Deck 42"
Deck Style Floating Deck
Deck Style Description Exmark Series-1 stamped steel deck. Side discharge standard with the option to bag or mulch.
Deck Construction 10-gauge top that is formed and welded, 12-gauge side skirt and 7-gauge welded bumper.
Blade Tip Speed Approximately 18,500 fpm.
Cutting Heights 1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.5" (1.3 cm) increments, adjustable from operator seat with standard lever lift.
Blades 2 Blades at 21.60" Length
Dimensions
Width 53.8 in. (136.7 cm)
Length 71.8 in. (182.4 cm)
Height 40.7 in. (103.4 cm)
Curb Weight 555
