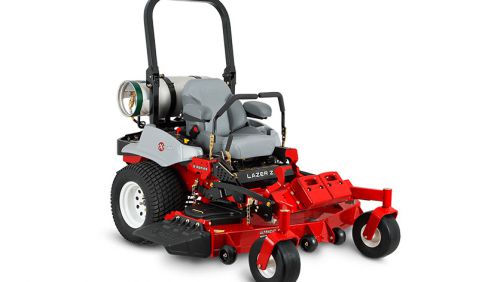

Mowers LZS740PKC52400 / NOT AVAILABLE

Double tap to zoom



Features

Lower Operating Costs

Typically, fuel costs for propane will be less than gasoline, which results in lower operating costs.

Green Alternative Fuel

Propane is considered a Green Alternative Fuel and when burned, it produces less GHG (green house gas) yielding a reduced carbon footprint as compared to gasoline. PERC (Propane Education & Research Council) reports that GHG reductions typically range in the 20% to 25% range.

No Hour Restrictions

No known restrictions regarding hours of operation on "Ozone Action Days."

Cleaner Burning Fuel
Propane is a cleaner burning fuel and has fewer combustion by-products as compared to gasoline. Engine oil will contain less contaminates for the equivalent hours of operation.

Fuel Stability

No deterioration or breakdown of fuel over time creating "varnish deposits" as gasoline does. No need for fuel stabilizers during long periods of storage.

Unique "Vapor Draw" Design

The propane tanks are of a unique "vapor draw" design that includes a special baffle system to prevent liquid propane ingestion into the supply line, which can cause damage to fuel system components and render the unit inoperative.

Specifications

Equipment
Blade Spindles No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver.
Drive Tires 23 x 9.5-12, 4 ply Turf Master®
Cup Holder Standard
Tractor Frame Unibody, welded, heavy-duty 1.5" x 3" tubular steel.
Steering Control Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions.
Front Caster Tires 13 x 5.0-6, smooth-tread, semi-pneumatic.
Parking Brake Lever-actuated disc brake.
Seat Deluxe, two tone, bolstered seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up.
Electrical 12-volt battery with 20-amp alternator.
Power Components
Engine Brand Kohler®
Engine Model PCV740
Engine Displacement 747
Engine Series Command™ EFI Propane
Engine Type EFI Propane
Engine Speed 3,750 rpm
Air Filter Heavy-duty canister air filtration system
Fuel Type Propane EFI
Fuel Capacity 43.5-lb propane tank
Fuel Indicator Yes - Float Gauge
Drive Hydro-Drive
Drive Description Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, integrated cooling fans, 1.7-quart integrated reservoir, spin-on filter and heavy-duty components. 12 cc pumps and 14. 5 cubic inch motors.
Speed Infinitely variable speed selection from 0-10.0 mph (16 kmph) forward, 0-6.0 mph (9.7 kmph) reverse.
Carb Compliant Yes
Deck Lift Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
Safety Package Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
ROPS 2-post foldable ROPS standard with seat belt and latch.
PTO Engagement MagStop electromagnetic 200-ft-lb clutch with spot brake
Drive Wheel Release Allows unit movement without engine running.
Casters .50" thick caster yoke arms.
Decks
Width / Cutting Deck 52"
Deck Style Floating Deck
Deck Style Description Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.
Deck Construction 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge formed and welded spindle mounting locations for improved strength and reduced weight.
Blade Tip Speed Approximately 18,500 fpm.
Cutting Heights 1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments adjustable from operator's seat.
Blades 3 Blades at 18.00" Length
Dimensions
Width 64.8 in. (184.9 cm)
Length 79.2 in. (211.1 cm)
Height 70 in. (177.8 cm)
Curb Weight 1307
