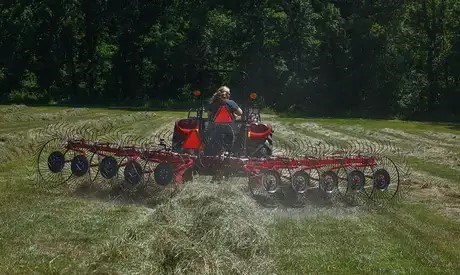

Case IH WR102

New Products / Case IH / Wheel Rakes / Wheel Rakes / WR102

Double tap to zoom

Features
Specifications

Features

Adjustments

Maxxum-150-and-WR302_1542_10-17

Quick and Easy Adjustments

Adjust the raking beam angle to form loose windrows for more airflow or a tighter windrow if conditions are dry or windy
An optional single side opening kit allows for independent operation of each side. (WR201 and WR302)
In tight spaces or when finishing up a field, rake with only one side of the wheel rake (WR102 model only)
Adjust windrow width from the comfort of the tractor seat with a hydraulic adjustment option (WR302 model)

Transportation

Farmall Utility 75A_0729_07-18

Easily Change from Transport to Raking

Rake folds on top of cart for easy transport
In the field, you simply push a lever and the rake wheels lower
Wheels fold back up for transport with the pull of a lever

Specifications

Wheel Rake Description
Manufacturer Description	Carted‌‌‌‬‌‬‌‌‌‌‌‌‬‬‌‬‬‌‌‍‌‌‌‌ V-Type

Dimensions
Windrow Width Adjustment	Manual‌‌‌‬‌‬‌‌‌‌‌‌‬‬‌‬‬‌‌‍‌‌‌‌ std; hydraulic opt.
Max Raking Width (ft/in)	24 ft 6 in
Min Windrow Width (ft/in)	3 ft
Max Windrow Width (ft/in)	6 ft 7 in
Transport Width (ft/in)	8 ft 5 in
Transport Length (ft/in)	22 ft
Transport Height (ft/in)	6 ft 1 in

Weight
Operating Weight (lb)	2115

Rake Wheels
Number Of Rake Wheels	12
Rake Wheel Diameter (in)	55
Tines Per Wheel	40
Rake Wheel Bearings	Tapered‌‌‌‬‌‬‌‌‌‌‌‌‬‬‌‬‬‌‌‍‌‌‌‌ roller - greaseable
Tine Diameter	0.28

Transport Tires
Tire Size	205/75‌‌‌‬‌‬‌‌‌‌‌‌‬‬‌‬‬‌‌‍‌‌‌‌ - 15

Options
Center Kicker Wheel	Optiona‌‌‌‬‌‬‌‌‌‌‌‌‬‬‌‬‬‌‌‍‌‌‌‌l
Wind Panels On Rake Wheels	No

Tractor Requirements
Required Tractor Power - Low (hp)	50
Hydraulic Circuits	‌‌‌‬‌‬‌‌‌‌‌‌‬‬‌‬‬‌‌‍‌‌‌‌1
