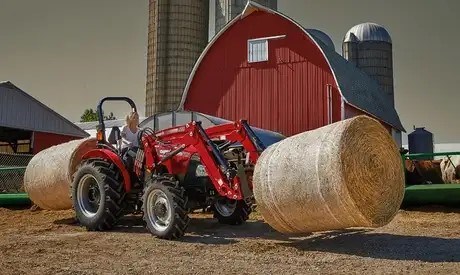

Case IH L555

New Products / Case IH / Loaders, Attachments & Implements / L505 Series Loaders / L555

Double tap to zoom

Features
Specifications

Features

Specifications

Self-Levelling Feature
Self-Levelling	Non‌‌‌‬‌‬‌‌‌‌‌‌‬‬‌‬‬‌‌‍‌‌‌‌ Self-Leveling

Tractor Compatibility
Matching Tractor Model Or Series, First	Farmall‌‌‌‬‌‬‌‌‌‌‌‌‬‬‌‬‬‌‌‍‌‌‌‌ 50A, 60A, 70A, Tier 4B

Lift Capacities
Lift Capacity To Maximum Height, At Pivot Pin (lb)	3550
Lift Capacity To Max. Height, 800mm (31.5in) Forward Of Pivot Pin (lb)	2200
Lift Capacity To 1.5m (59in) at Pivot Pin (lb)	3880
Lift Capacity To 1.5m (59in) Height, 800mm (31.5in) Forward Of Pivot Pin (lb)	2780

Lift Height Dimensions, Fully Raised
Max Lift Height To Bucket Pivot Pin (in)	119
Max Lift Height Under Level Bucket (in)	109
Max Dump Clearance (in)	87

Boom Lift Breakout Force
Boom Breakout Force, At Pivot Pin, Bucket At Ground (lbf)	4890
Boom Breakout Force, 800mm (31.5in) Forward Of Pivot Pin At Ground (lbf)	3220

Bucket Rollback Force
Bucket Rollback Force At Max. Height, 800mm (31.5in) Forward Of Pivot Pin (lbf)	4960
Bucket Rollback Force At Ground, 800mm (31.5in) Forward Of Pivot Pin (lbf)	4430

Horizontal Reach Distance
Dump Reach At Maximum Lift Height (in)	29
Ground Level Reach (in)	84

Dump And Rollback Angles
Max Dump Angle, Loader Raised (°)	42
Max Rollback Angle, Bucket At Ground (°)	27

Digging Depth
Digging Depth (in)	5.9

Couplers For Buckets And Attachments
First Coupler Type Available	Skid-steer‌‌‌‬‌‬‌‌‌‌‌‌‬‬‌‬‬‌‌‍‌‌‌‌ type

Hydraulic Function, Ride And Detachable Features
Third Function Valve Available	Optiona‌‌‌‬‌‬‌‌‌‌‌‌‬‬‌‬‬‌‌‍‌‌‌‌l
