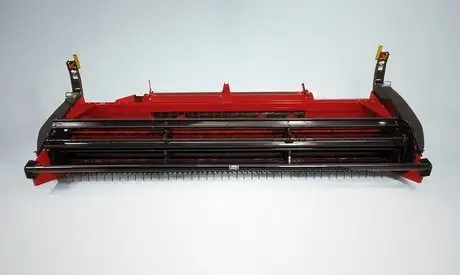

Designed for a Cleaner Cut
The Case IH HDX series sicklebar headers are engineered to deliver a long life and a cleaner cut. Featuring bolt-on knife sections, hydraulic angle adjustments from 6 to 12 degrees below horizontal, a unique floating auger and easily adjustable skid shoes.
Built to Work in Heavy Crop Conditions
The HDX 2 Series Sicklebar Headers feature a conditioning system that is built to work in heavy crop conditions. Conditioning rolls crimp stems thoroughly for fast dry down. The roll pressure system uses a torsion bar, which allows conditioning rolls to automatically separate to clear slugs and the chevron pattern provides even windrow formation.
There are three options available: Rubber-on-Rubber, Steel-on-Steel, and Hi-Contact
Available Options on the WD5 Windrowers and HDX 2 Series
| Sicklebar Header | |
|---|---|
| Cutting Width (ft/in) | 16 ft 3 in |
| Header Drive | Hydraulic |
| Weight (lb) | 4120 |
| Sickle Cutterbar | |
|---|---|
| Single Or Double Knife | Timed dual counterstroking |
| Max Knife Speed | 1810 |
| Sickle Stroke (in) | 3 |
| Max Cutter Bar Angle Range (°) | 12 |
| Reel | |
|---|---|
| Number Of Bats | 5 |
| Reel Diameter (in) | 42 |
| Auger | |
|---|---|
| Auger Description | Single, floating |
| Roll Conditioner | |
|---|---|
| Roll Length (in) | 102 |
| Max Roll Speed (rpm) | 717 |
| Standard Roll Material | Rubber |
| Roll Surface Pattern | Chevron |
| Roll Pressure System | Torsion bar |
| Roll Adjustment Method | Hand Crank |
| Max Windrow/Swath Width (in) | 96 |
