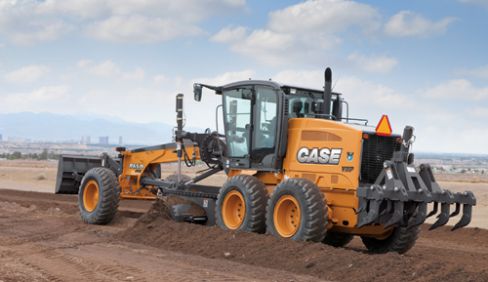

CASE 865B AWD Motor Grader

PRODUCTIVITY
Get the flexibility of both manual and automatic shifting to match the job conditions at hand with our powershift direct-drive transmission. Increased power, stability and turning performance to the moldboard are delivered through the A-frame and high-strength circle. And for unmatched ground-breaking power, our rear-ripper accommodates up to five teeth and front scarifier accommodates 11 teeth.

FUEL EFFICIENCY
Move even more dirt with less horsepower and better fuel economy through a multi-radius involuted moldboard design.

COMFORT/VISIBILITY
Superior all-around visibility and a clear view of the moldboard are achieved with floor-to-ceiling cab glass. Operator comfort is provided by ergonomic, low-effort control levers positioned within easy reach.

SERVICEABILITY
Get easy access to the engine and perform daily maintenance checkpoints with the friendly flip-up hood. And reaching the fill port or grease zerks is simple with ground-level access including our exclusive fuel fill with lockable cap.

Specifications

ENGINE
Emission Rating Tier 3
Engine make / model Case
Net Power - hp (kW) 205 (153)
Rated rpm - rpm 2200
Gross Power - hp (kW) 220 (164)
No. of Cylinders 6
Displacement - Inches³ (ltr) 409 (6.7)
Peak Engine Torque - lbf / ft (Nm) 686 (930)
Transmission type Powershift
Speed Range - Forward 8

DIMENSIONS
Wheelbase - ft/in (mm) 20 ft 5 in (6219)
Blade Base (blade to frt wheel) - ft/in (mm) 8 ft 5 in (2562)
Overall Length - ft/in (mm) 28 ft  (8534)
Overall Height w/cab - ft/in (mm) 10 ft 11 in (3340)
Clearance Under Front Axle - inches (mm) 14.9 (380)
Bank Cut Angle - ± ° 90
Shoulder Reach Outside Wheels - Right - ft/in (mm) not published
Shoulder Reach Outside Wheels - Left - ft/in (mm) not published
Blade Lift Above Ground - inches (mm) 17.5 (445)
Blade Pitch Operation - Adjustment Fwd - ° 42
Blade Pitch Operation - Adjustment Rear - ° 87
Blade Side Shift Right - inches (mm) 27 (686)
Blade Side Shift Left - inches (mm) 20.9 (533)
Circle Rotation - ° 360
Circle Diameter - inches (mm) 69 (1752)
Standard moldboard length - ft/in (mm) 13 ft  (3962)
Moldboard height - inches (mm) 23.6 (600)

CAPACITIES
Fuel Tank - gallons (US) (ltr) 90 (341)
Hydraulic Reservoir - gallons (US) (ltr) 24 (90)
SAE Operating Weight - lbs (kg) 35273 (16000)
Weight on Front Wheels - lbs (kg) 11133 (5050)
Weight on Tandem Wheels - lbs (kg) 24140 (10950)
