B Series 845B
Overview:
With a stronger throttle response at every rpm and improved cold-start capability, the CASE 845B motor grader will make you more productive on the toughest jobs and longest days. The B series motor machines provide excellent visibility to the rear and also have a front articulation joint which gives the operator a clea... + Read More
Features

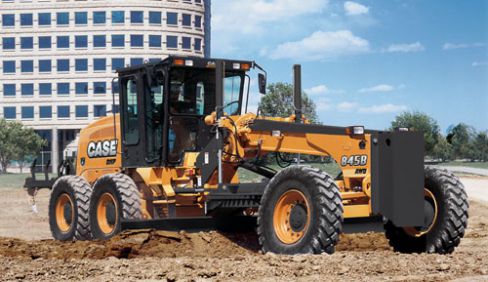

CASE 845B Motor Grader
PRODUCTIVITY
Get the flexibility of both manual and automatic shifting to match the job conditions at hand with our powershift direct-drive transmission. Increased power, stability and turning performance to the moldboard are delivered through the A-frame and high-strength circle. And for unmatched ground-breaking power, our rear-ripper accommodates up to five teeth and front scarifier accommodates 11 teeth.
FUEL EFFICIENCY
Move even more dirt with less horsepower and better fuel economy through a multi-radius involuted moldboard design.
COMFORT/VISIBILITY
Superior all-around visibility and a clear view of the moldboard are achieved with floor-to-ceiling cab glass. Operator comfort is provided by ergonomic, low-effort control levers positioned within easy reach.
SERVICEABILITY
Get easy access to the engine and perform daily maintenance checkpoints with the friendly flip-up hood. And reaching the fill port or grease zerks is simple with ground-level access including our exclusive fuel fill with lockable cap.
Specifications
| ENGINE | |
| Emission Rating | Tier 3 |
| Engine make / model | Case |
| Net Power - hp (kW) | 160 (119) |
| Rated rpm - rpm | 2200 |
| Gross Power - hp (kW) | 173 (129) |
| No. of Cylinders | 6 |
| Displacement - Inches³ (ltr) | 409 (6.7) |
| Peak Engine Torque - lbf / ft (Nm) | 560 (758) |
| Transmission type | Powershift |
| Speed Range - Forward | 8 |
| DIMENSIONS | |
| Wheelbase - ft/in (mm) | 20 ft 5 in (6219) |
| Blade Base (blade to frt wheel) - ft/in (mm) | 8 ft 5 in (2562) |
| Overall Length - ft/in (mm) | 28 ft (8534) |
| Overall Height w/cab - ft/in (mm) | 10 ft 11 in (3340) |
| Clearance Under Front Axle - inches (mm) | 14.9 (380) |
| Bank Cut Angle - ± ° | 90 |
| Shoulder Reach Outside Wheels - Right - ft/in (mm) | not published |
| Shoulder Reach Outside Wheels - Left - ft/in (mm) | not published |
| Blade Lift Above Ground - inches (mm) | 17.5 (444.5) |
| Blade Pitch Operation - Adjustment Fwd - ° | 42 |
| Blade Pitch Operation - Adjustment Rear - ° | 87 |
| Blade Side Shift Right - inches (mm) | 27 (686) |
| Blade Side Shift Left - inches (mm) | 21 (533) |
| Circle Rotation - ° | 360 |
| Circle Diameter - inches (mm) | 69 (1752.6) |
| Standard moldboard length - ft/in (mm) | 12 ft (3658) |
| Moldboard height - inches (mm) | 22 (559) |
| CAPACITIES | |
| Fuel Tank - gallons (US) (ltr) | 90 (341) |
| Hydraulic Reservoir - gallons (US) (ltr) | 24 (91) |
| SAE Operating Weight - lbs (kg) | 31812 (14430) |
| Weight on Front Wheels - lbs (kg) | 9105 (4130) |
| Weight on Tandem Wheels - lbs (kg) | 22707 (10300) |
