Case CX17B / NOT AVAILABLE

Double tap to zoom



Features

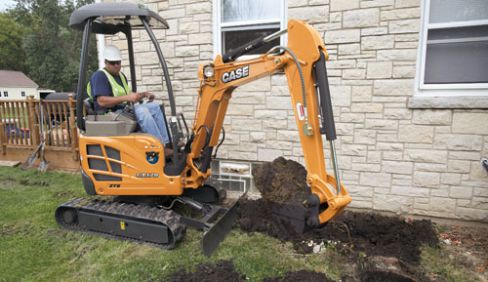

CASE CX17B Mini Excavator

PRODUCTIVITY
Parallel, unobstructed operation near obstacles, tree lines, and foundations can be done with the zero tail swing design and independent center swing boom.  Rapid machine positioning and simultaneous moves of the swing boom and house are accomplished via the foot pedal swing-boom control.  Machine stability and backfilling are provided by the hydraulically-controlled backfill blade. Surface damage is kept to a minimum due to the standard, durable rubber tracks while optional steel tracks provide even greater protection.

FUEL EFFICIENCY
The Mitsubishi engine is powered to match the performance of the CX17B. This engine meets the current Tier 4 Interim environmental standards while consuming less fuel. CASE Mini Excavators also feature a one touch deceleration to minimize fuel usage while not in operation. Finally, the integrated-flow pump system (IFPS) efficiently manages the pump flow during operation to maximize the use of engine power and increase the fuel efficiency.

COMFORT/VISIBILITY
The three post canopy provides exceptional visibility to all areas while operating the CX17B. Responsive performance and low fatigue are delivered through the smooth, intuitive pilot controls. A standard pattern selector allows operators to choose their control pattern preference for optimum productivity.

SERVICEABILITY
Get service and diagnostics done quick and easy with a one-piece, swing-out side access panel. Grouped hydraulics and  rear engine access provide the ability to do daily checks in no time at all.

Specifications

ENGINE
Emission Rating Tier 4
Engine make / model Mitsubishi L3E-W231
Net Power - hp (kW) 15.15 (11.3)
Rated rpm - rpm 2200
Max speed - mph (kph) 2.5 (4)

HYDRAULIC SYSTEM
Main pumps total flow - gallons (US) / min (lt/min) 8.6 (32.6)
Relief pressure, main - PSI (bar) 3133 (216)

BOOM
Boom length - ft/in (m)
5 ft 9 in (1.75)
Arm length - ft/in (mm)
3 ft 3 in (990)
Arm breakout force normal - lbf (kN)
3417 (15.2)

WORKING RANGES
Max. Dig Depth - ft/in (mm) 7 ft 1 in (2150)
Reach at ground level - ft/in (mm) 12 ft 5 in (3790)
Dump Height - ft/in (mm) 8 ft 8 in (2650)

LIFTING CAPACITIES AT GROUND LEVEL
Lift over end, 10' (3 050 mm) radius - lbs (kg) 870 (390)
Lift over end, Max. reach - lbs (kg) 870 (390)
Lift over side, 10' (3050 mm) radius - lbs (kg) 460 (210)
Lift over side, Max. reach - lbs (kg) 460 (210)

DIMENSIONS
Tail Swing Radius - ft/in (mm) 2 ft 2 in (660)
Ground Clearance - inches (mm) 6.9 (175)

WEIGHTS
Operating Weight - lbs (kg) 3638 (1650)
