Features

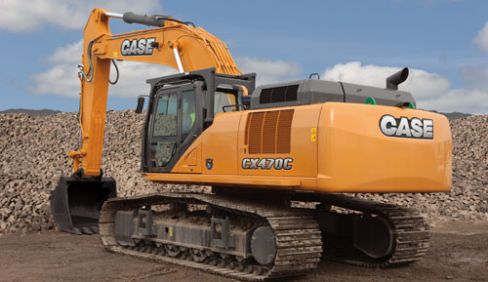

CASE CX470C Excavator



PRODUCTIVITY
Power and efficiency are optimized by advanced technologies including the unique CASE Intelligent Hydraulic System that helps manage the engine and hydraulics. And performance is maximized with five percent quicker cycle times — allowing you to fill up more trucks every shift. For high performance that matches the unique demands of each job, Case Smart Digging System attachments are available with pin-on buckets including: heavy-duty, severe duty, rock and high capacity. New coupler specific buckets are also available for better performance when working with the Case Multi-Fit coupler.

FUEL EFFICIENCY
Interim Tier 4 CEGR technology, matched with the Intelligent Hydraulic System, delivers fuel consumption savings of up to 15% versus the standard configuration.

COMFORT/VISIBILITY
Operator comfort and productivity is enhanced with increased cab space, improved air flow and air conditioning. Automotive level sound dampening of 71 dba is achieved with best-in-class soundproofing, while real time fuel consumption and images from the rear of the swing house are visible on the new 7-inch control monitor display.

SERVICEABILITY
Maintenance is easy with wide-open panels for easy access to service points, ground level access to grouped lubrication points, along with quick-change filters and simple gauges for daily service checks The Case EMS (Easy Maintenance System) utilizes stratified bushings and plated pins to hold grease longer, prevent rattling, and lengthen service intervals.

Specifications

ENGINE
Emission Rating Interim Tier 4
Engine make / model Isuzu 6 UZ1X
Net Power - hp (kW) 362 (270)
Rated rpm - rpm 2000
Net Peak Torque - lbf / ft (Nm) 1058 (1435)
Max speed - mph (kph) 3.3 (5.3)
Max Drawbar pull - lbf (kN) 76400 (340)

UNDERCARRIAGE
Track shoe width - inches (mm) 35.4 (900)
Ground Pressure - Std. Pad - PSI (kPa) 7.98 (55)

HYDRAULIC SYSTEM
Main pumps total flow - gallons (US) / min (lt/min) 192.4 (728)
Relief pressure main - PSI (bar) 4550 (320)

SWING SYSTEM
Swing Speed - rpm 9.1

BOOM
Boom length - ft/in (m) 22 ft 11 in (6.98)
Arm length - ft/in (mm) 11 ft 1 in (3380)
Arm breakout force normal - lbf (kN) 46311 (206)

WORKING RANGES
Max Dig Depth - ft/in (mm) 25 ft 4 in (7720)
Reach at ground level - ft/in (mm) 38 ft 7 in (11770)
Depth of 8' bottom - ft/in (mm) 24 ft 10 in (7580)
Dump Height - ft/in (mm) 25 ft 5 in (7740)

LIFTING CAPACITIES AT GROUND LEVEL
Lift over end 10'  (3 050 mm) radius - lbs (kg) 20800 (9435)
Lift over end Max reach - lbs (kg) 12350 (5602)
Lift over side 10' (3050 mm) radius - lbs (kg) 20800 (9435)
Lift over side Max reach - lbs (kg) 9750 (4423)

BUCKET
Bucket breakout force normal - lbf (kN) 60700 (270)

BLADE
Blade std or opt not published

DIMENSIONS
Tail Swing Radius - ft/in (mm) 12 ft 3 in (3730)
Ground Clearance - inches (mm) 21 (540)

WEIGHTS
Operating Weight - lbs (kg) 105300 (47763)
