Case CX130C / NOT AVAILABLE

New Products / Case CE / Excavators / Full Size Excavators / CX130C

Double tap to zoom



Features

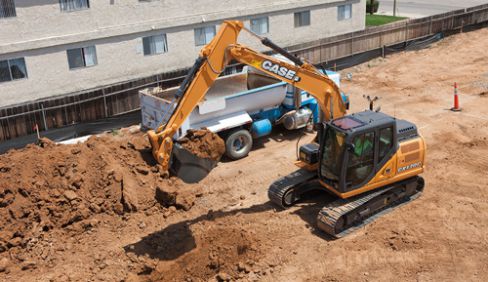

CASE CX130C Excavator

PRODUCTIVITY
Increasing productivity and efficiency with faster cycle times, wider dozer blade working ranges, and multiple hydraulic attachment setting options.

FUEL EFFICIENCY
Setting the standards for fuel efficiency, the CX130C delivers 15% greater fuel efficiency. With Tier 4 technology total fuel consumption is reduced.

COMFORT/VISIBILITY
With increased operator cab space, increased airflow and increased air-conditioning performance – comfort levels are at an all-time high.

SERVICE
Maintenance is made easy with quick-change filters and simple gauges for daily service checks with a 500-hour engine oil change interval and a 5000-hour hydraulic oil change interval. The EPF (Engine Protection Feature) reduces costs and service time.

Specifications

ENGINE
Emission Rating Interim Tier 4
Engine make / model Isuzu 4 JJ 1X
Net Power - hp (kW) 100 (74.9)
Rated rpm - rpm 2000
Net Peak Torque - lbf / ft (Nm) 265 (359)
Max speed - mph (kph) 3.5 (5.6)
Max Drawbar pull - lbf (kN) 25900 (115)

UNDERCARRIAGE
Track shoe width - inches (mm) 23.6 (600)
Ground Pressure - Std. Pad - PSI (kPa) 4.79 (33)

HYDRAULIC SYSTEM
Main pumps total flow - gallons (US) / min (lt/min) 68.2 (258)
Relief pressure main - PSI (bar) 4970 (343)

SWING SYSTEM
Swing Speed - rpm 14.3

BOOM
Boom length - ft/in (m) 15 ft 2 in (4.63)
Arm length - ft/in (mm) 8 ft 2 in (2500)
Arm breakout force normal - lbf (kN) 14800 (66)

WORKING RANGES
Max Dig Depth - ft/in (mm) 18 ft 2 in (5540)
Reach at ground level - ft/in (mm) 26 ft 8 in (8170)
Depth of 8' bottom - ft/in (mm) 17 ft 5 in (5330)
Dump Height - ft/in (mm) 20 ft 10 in (6390)

LIFTING CAPACITIES AT GROUND LEVEL
Lift over end 10'  (3 050 mm) radius - lbs (kg) 18450 (8369)
Lift over end Max reach - lbs (kg) 3000 (1361)
Lift over side 10' (3050 mm) radius - lbs (kg) 11700 (5307)
Lift over side Max reach - lbs (kg) 2700 (1225)

BUCKET
Bucket breakout force normal - lbf (kN) 21400 (95)

BLADE
Blade std or opt not published

DIMENSIONS
Tail Swing Radius - ft/in (mm) 6 ft 10 in (2130)
Ground Clearance - inches (mm) 17 (440)

WEIGHTS
Operating Weight - lbs (kg) 28600 (13000)
