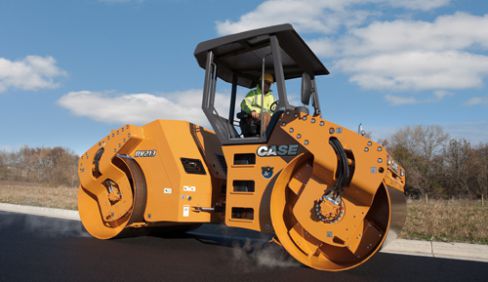

CASE DV213 Compactor

PRODUCTIVITY
100 percent traction efficiency and zero slippage on compacted surfaces are delivered by our CASE Dual Drum Drive. Productivity is maximized on coarse bases and hot-mix asphalt surfaces with high centrifugal forces and dual amplitudes. Surface damage is minimized while delivering smooth pavement due to automatic vibration control.

FUEL EFFICIENCY
Meet current environmental standards and consume less fuel with Tier III-certified engines.

COMFORT/VISIBILITY
Keep comfortable even on rough surfaces with the vibration-dampening, isolation-mount work platform. Operators get a full view of the compacted surface through a multi-position station and 180 degrees of swivel seat positioning. Illumination is improved via standard front and rear-facing halogen lights.

SERVICEABILITY
Daily maintenance and diagnostics can be done quickly and easily through a one piece vertical lift hood and ground-level access to various service checkpoints.

Specifications

FEATURES
Seat type Sliding

ENGINE
Emission Rating Tier 3
Engine manufacturer Cummins
Engine model QSB 4.5 - C130
Engine rated power - hp (kW) 130 (97)
RPM - power rating - rpm 2200
Displacement - Inches³ (ltr) 275(4.5)

DRIVETRAIN
Transmission type Hydrostatic
Drum drive single/double Both
Gradeability with vibration - % 30
Drum vibration Front / Both
Centrifugal force 1 - front - lbf (kN) 21514 (96)
Centrifugal force 1 - rear - lbf (kN) 21514 (96)

FLUID CAPACITIES
Fuel tank - gallons (US) (ltr) 56 (210)
Water tank - gallons (US) (ltr) 264 (1000)

DIMENSIONS
Overall length - inches (mm) 193 (4890)
Overall width - inches (mm) 87 (2220)
Height w/ROPS - inches (mm) 120 (3050)
Inside turning radius - inches (mm) 147 (3730)
Outside turning radius - inches (mm) 231 (5867)
Drum width - inches (mm) 83 (2100)

WEIGHTS
Operating weight - lbs (kg) 28718 (13030)
