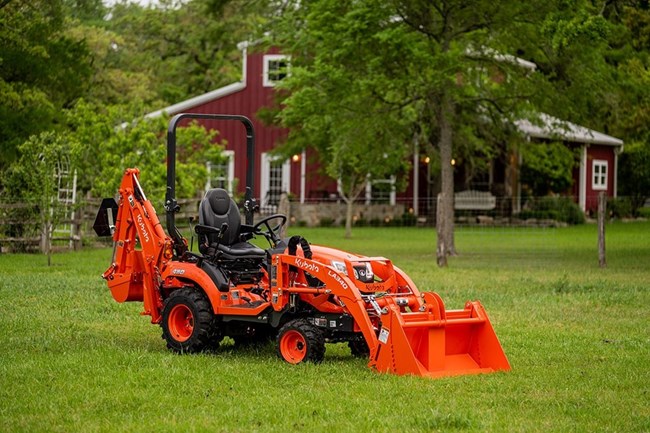

Kubota BX23S

Double tap to zoom



Features

Meet the BX Series

#1 Selling Compact Tractor in the USA*
BX Series is the #1 selling sub-compact tractor in the U.S. for over ten years. It gives you the best in class when it comes to reliability, comfort, and versatility.

*Based on EDA/UCC Data from 01/01/2018 - 12/31/2022 for sales of new compact tractors 0-200 Hp in the USA.

Kubota Swift-Connect

A simple lever operation is all it takes to quickly detach the backhoe from the BX23S, letting you drive away. To reattach, just back the BX23S into the backhoe and let the auto-lock mechanism secure them together.

Reversible Seat

When it’s time to switch from using the tractor or loader to using the backhoe, simply lift the reversible seat and rotate it to the back. The seat can also be adjusted forward and backward for optimal operator comfort.

Boom & Swing Cylinder Cushion Valves

Standard on the BX23S, an integrated cushion valve ensures smooth movement both horizontally and vertically, minimizing the shock that’s transmitted to the operator when the backhoe arm hits its range limits.

No-Spill Coupler

The backhoe uses the same No-Spill coupler system as the front loader to help keep your backhoe clean and oil-free.

Wide View

The benefit of tucking the hydraulic hoses inside the backhoe boom provides greater protection for the hoses and greater visibility for the operator.

Mechanical Thumb (Optional)

A positionable mechanical thumb gives the BX23S the ability to grasp and move logs, landscaping materials, and other items with ease, greatly expanding the types of jobs you can do around your property.

Specifications

Specifications
Gross Engine HPGross Engine HP21.6
PTO HPPTO HP17.7
Standard TransmissionStandard TransmissionHST (2F/2R)
Loader Lift CapacityLoader Lift CapacityRigid Bucket: 739 (335 kg) QA Bucket: 613 (278 kg)
PTOPTOStandard: Live independent, Mid: 2500 rpm , Rear: 540 rpm
Hydraulic FlowHydraulic Flow6.2
Three Point Linkage TypeThree Point Linkage TypeOptional
Three Point Linkage CapacityThree Point Linkage Capacity680
Operator PlatformOperator PlatformROPS
Driveline TypeDriveline Type4WD
